Sandvik creates first 3D printed diamond composite

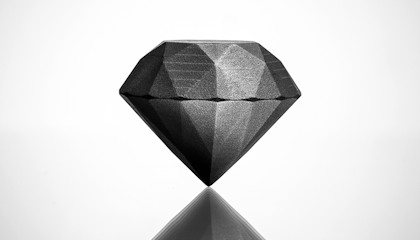

Sandvik has created the first ever 3D printed diamond composite. While this diamond does not sparkle, it is perfect for a wide range of industrial uses. This super-hard material can be 3D printed in highly complex shapes and can thereby revolutionise the way industry uses the hardest natural material on the planet.
Diamond is harder than anything else in nature. It is a key component in a large range of wear resistant tools in industry, from mining and drilling to machining and also medical implants. Since 1953 it has been possible to produce synthetic diamond, but since it’s so hard and complicated to machine, it is almost impossible to form complex shapes.
Until now, production of super hard diamond materials only has allowed for a few simple geometric configurations to be formed. By using additive manufacturing and a tailor-made, proprietary post-processing method, Sandvik managed to 3D-print diamond composites which can be formed into almost any shape.
Historically, 3D printing a diamond was something that none of us imagined was achievable
The difference between a Sandvik diamond and natural or synthetic diamond is that the former is a composite material. Most of the material is diamond, but to make it printable and dense it needs to be cemented in a very hard matrix material, keeping the most important physical properties of pure diamond.
The opportunities are enormous
Due to the use of additive manufacturing, diamond components can be created application ready, in very complex shapes, without the need for further machining. This will open up the possibility of using it in applications that were previously considered impossible.
“Historically, 3D printing a diamond was something that none of us imagined was achievable,” explained Anders Ohlsson, Delivery Manager at Sandvik.
“On seeing its potential, we began to wonder what else would be possible from 3D-printing complex shapes in a material that is three times stiffer than steel, with heat conductivity higher than copper, the thermal expansion close to Invar – and with a density close to aluminium. These benefits make us believe that you will see this diamond composite in new advanced industrial applications ranging from wear parts to space programs, in just a few years from now.”
The 3D printing process
“The additive manufacturing process used is highly advanced,” explained Mikael Schuisky, Head of R&D and Operations at Sandvik. “We are printing in a slurry consisting of diamond powder and polymer using a method called stereolithography, where complex parts are produced, layer by layer, using ultraviolet light.
The 3D printed diamond composite from Sandvik is a true innovation. It means that we can begin to use diamond in applications and shapes never conceived possible before
“This step was extremely complicated. However, after extensive R&D efforts and several trials we managed to take control over the process and made the first 3D printed diamond composite.”
“It was incredible to see what we can achieve when we combine our leading expertise in materials technology with our strong capabilities in additive manufacturing and post processing,” commented Mikael Schuisky. “We have some of the world’s leading experts in both materials and additive manufacturing, which in a case like this can benefit many industries around the globe making it possible to use diamond in applications and shapes never conceived possible before.”
“Rather than looking to actually develop completely new materials, today the big push within the industry involves the often-radical restructuring of existing materials,” said Annika Borgenstam, Professor at the Department of Materials Science and Engineering at Stockholm’s KTH Royal Institute of Technology.”
Annika Borgenstam, Professor at the Department of Materials Science and Engineering, KTH Royal Institute of Technology.
“Using revolutionary new processes such as additive manufacturing will open up completely new ways of using the same types of materials that we have today, by building in the properties that we need.”
“This 3D printed diamond composite is a true innovation. It means that we can begin to use diamond in applications and shapes never conceived possible before,” said Susanne Norgren, Adjunct Professor in Applied Materials Science at Uppsala University. “Just imagine what it could do to industries, when it is possible to print anything, in any shape – in diamond.”
Just imagine what it could do to industries, when it is possible to print anything, in any shape – in diamond
Susanne Norgren, Adjunct Professor in Applied Materials Science, Uppsala University
Sustainable with superior properties
Another key advantage of additive manufacturing is that it allows engineers to minimize material waste, making the technology more sustainable. The diamond powder in Sandvik’s process can be extracted from the polymer in the slurry after the printing, and then be recycled and reused in another print-job.
The diamond composite has been tested and found to have extremely high hardness, exceptional heat conductivity, while also possessing low density, very good thermal expansion and fantastic corrosion resistance.
“We now have the ability to create strong diamond composites in very complex shapes through additive manufacturing, which fundamentally will change the way industries will be able to use this material. As of now, the only limit to how this super-hard material can be shaped and used is down to the designer’s imagination,” Mikael Schuisky concluded.
Since this article was written, Sandvik has decided to focus on growing its metal powder sales and has discontinued its additive manufacturing services.
